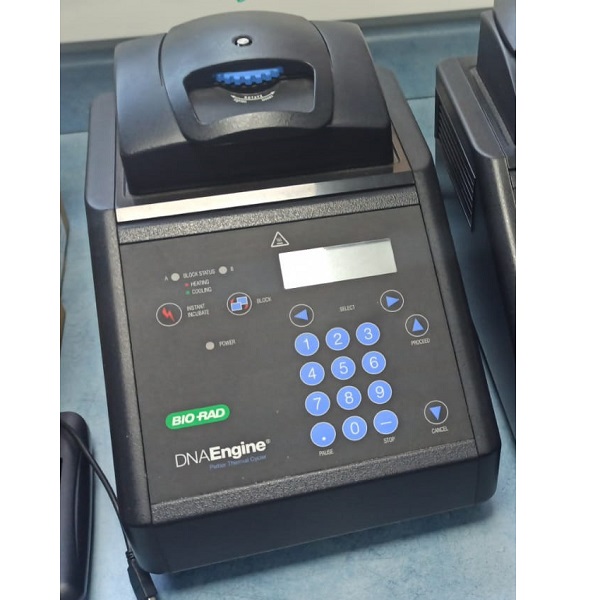

מכשיר PCR יד שניה - גרדיאנט ראש אחד 96 בארות


מודל:Alpha Unit Block Assembly for PTC DNA Engine Systemsיצרן:BioRadמק"ט:ALS-1296מצב:Pre-ownedשנת ייצור:2018
מכשיר PCR יד שניה - גרדיאנט ראש אחד 96 בארות

Alpha Unit Block Assembly for PTC DNA Engine Systems
מק"ט בלוק חימום בודד 96 בארות: ALS-1296
Peltier RPN03057
Specifications:
Thermal range: 4° to 100°C for the Slide Chambers Alpha unit
Thermal accuracy: ±0.3°C of programmed target at 90°C, NIST-traceable
Thermal uniformity: ±0.4°C well-to-well within 30 seconds of arrival at 90°C
Ramping speed: Up to 3°C/sec for all Alpha unit blocks
Gradient Specifications (96V Alpha module only)
Accuracy: +0.3°C of programmed target at end columns
30seconds after the timer starts for the gradient step
NIST–traceable
Column uniformity: +0.4°C, well–to–well within column, within 30seconds of reaching target temperature
Gradient calculator accuracy: +0.4°C of actual well temperature
Lowest programmable temp: 30°C
Highest programmable temp: 105°C
Sample capacity: Varies with installed Alpha unit (96 wells)
Line voltage: DNA Engine® cycler: 220 VAC
Frequency: 50 Hz single phase
Power: DNA Engine cycler: 850 W maximum
Fuses: Two 6.3 A, 250 V, 5 x 20 mm
Displays: One 20 x 4 LCD Alphanumeric display
Ports: One 25-pin 8-bit parallel interface printer port
One 9-pin RS-232 serial port for printer or remote use
One IEEE-488 bidirectional general purpose interface bus
Memory: 400 typical programs in up to 12 individual folders
Alpha Unit Block Assembly for PTC DNA Engine Systems
מק"ט בלוק חימום בודד 96 בארות: ALS-1296
Peltier RPN03057
Specifications:
Thermal range: 4° to 100°C for the Slide Chambers Alpha unit
Thermal accuracy: ±0.3°C of programmed target at 90°C, NIST-traceable
Thermal uniformity: ±0.4°C well-to-well within 30 seconds of arrival at 90°C
Ramping speed: Up to 3°C/sec for all Alpha unit blocks
Gradient Specifications (96V Alpha module only)
Accuracy: +0.3°C of programmed target at end columns
30seconds after the timer starts for the gradient step
NIST–traceable
Column uniformity: +0.4°C, well–to–well within column, within 30seconds of reaching target temperature
Gradient calculator accuracy: +0.4°C of actual well temperature
Lowest programmable temp: 30°C
Highest programmable temp: 105°C
Sample capacity: Varies with installed Alpha unit (96 wells)
Line voltage: DNA Engine® cycler: 220 VAC
Frequency: 50 Hz single phase
Power: DNA Engine cycler: 850 W maximum
Fuses: Two 6.3 A, 250 V, 5 x 20 mm
Displays: One 20 x 4 LCD Alphanumeric display
Ports: One 25-pin 8-bit parallel interface printer port
One 9-pin RS-232 serial port for printer or remote use
One IEEE-488 bidirectional general purpose interface bus
Memory: 400 typical programs in up to 12 individual folders
Alpha Unit Block Assembly for PTC DNA Engine Systems
מק"ט בלוק חימום בודד 96 בארות: ALS-1296
Peltier RPN03057
Specifications:
Thermal range: 4° to 100°C for the Slide Chambers Alpha unit
Thermal accuracy: ±0.3°C of programmed target at 90°C, NIST-traceable
Thermal uniformity: ±0.4°C well-to-well within 30 seconds of arrival at 90°C
Ramping speed: Up to 3°C/sec for all Alpha unit blocks
Gradient Specifications (96V Alpha module only)
Accuracy: +0.3°C of programmed target at end columns
30seconds after the timer starts for the gradient step
NIST–traceable
Column uniformity: +0.4°C, well–to–well within column, within 30seconds of reaching target temperature
Gradient calculator accuracy: +0.4°C of actual well temperature
Lowest programmable temp: 30°C
Highest programmable temp: 105°C
Sample capacity: Varies with installed Alpha unit (96 wells)
Line voltage: DNA Engine® cycler: 220 VAC
Frequency: 50 Hz single phase
Power: DNA Engine cycler: 850 W maximum
Fuses: Two 6.3 A, 250 V, 5 x 20 mm
Displays: One 20 x 4 LCD Alphanumeric display
Ports: One 25-pin 8-bit parallel interface printer port
One 9-pin RS-232 serial port for printer or remote use
One IEEE-488 bidirectional general purpose interface bus
Memory: 400 typical programs in up to 12 individual folders
