Filter based Microplate Reader קורא פלטות מבוסס פילטרים בליעה בלבד יד שניה

Filter based Microplate Reader קורא פלטות מבוסס פילטרים בליעה בלבד יד שניה

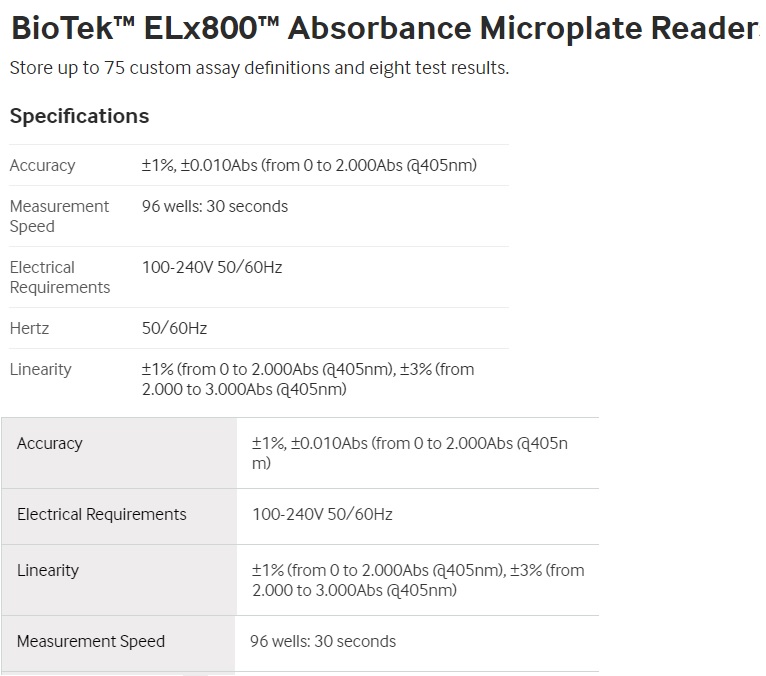

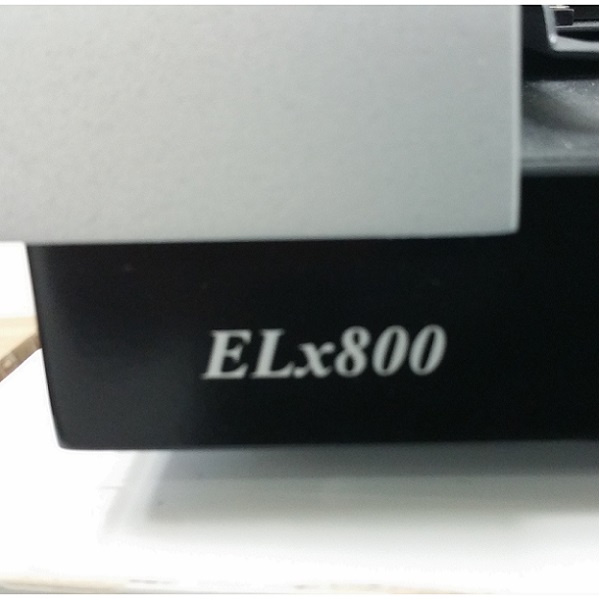

ELx800™ Absorbance (only) Microplate Reader
400 nm to 750 nm wavelength range
no heating!
Plate range: only 96 wells microplate reading capability
Gen5 Microplate Reader Software instaled on computer
Manufacture: Bio-tek, USA
Store up to 75 custom assay definitions and eight test results.
Light Source: Tungsten gas-filled bulb
Dimensions: 42 cm x 38 cm x 18 cm (16.5" deep x 15" wide x 7" tall)
Weight: 8 kg (18.5 lb. maximum)
Environment: Operating temperature 18° to 40°C (64° to 104°F)
Humidity: 10% to 85% noncondensing
Power Supply: Input 100 to 240 V~ ± 10.0% @ 50 to 60 Hz
Output +24 VDC, 2.1 A
Standard Model
Wavelength Range: 400 nm to 750 nm
Filters: 10 nm half-bandwidth interference filters.
User-accessible filter wheel. Up to 5 filters may be installed
on the instrument at one time.
Filters supplied: 405, 450, 490, and 630 nm.
The following specifications apply to 96-well, flat- or round-bottom plates,
single-wavelength measurements with a 50-second read (normal read mode):
Absorbance Measurement Range: 0.000 to 3.000 OD
Accuracy: ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405 nm
Linearity: ± 1.0% from 0.000 to 2.000 OD at 405 nm
± 3.0% from 2.000 OD to 3.000 OD @ 450 nm
Repeatability (STD): ± 0.5% ± 0.005 OD from 0.000 to 2.000 OD @ 405 nm
The following specifications apply to 96-well, flat- or round-bottom plates,
single-wavelength measurements with a 30-second read (rapid read mode):
Absorbance Measurement Range: 0.000 to 3.000 OD
Accuracy: ± 2.0% ± 0.020 OD from 0.000 to 2.000 OD @ 405 nm
Linearity: ± 2.0% from 0.000 to 2.000 OD @ 405 nm
Repeatability (STD): ± 1.0% ± 0.010 OD from 0.000 to 2.000 OD @ 405 nm
